Electrical Spec. |
Options | ||
|
Frequency rate |
0-40G |
Flange for set up |
|
|
Peak Power |
0.5KW |
More install method for option |
|
|
Avetage power at 1GHz |
50 |
Additional connector and the heat shrinkable tube |
|
|
Voltage standing radio |
≤2.0 |
Support for higher speed: 500Rpm |
|
|
Voltage standing radio typical |
≤1.2 |
|
|
|
Mechanical Spec |
Environment |
||
|
Speed |
300Rpm |
Working temperature |
-40℃~+80℃ |
|
Speed |
10N.cm |
Mechanical vibration |
MIL-SID-810E |
|
Seal class |
IP54 (IP68Options) |
Humidity |
60% |
|
Contact material |
Precious Metal：Gold-Gold |
Materials |
Lead Free, RoHS compliant |
|
Life |
50million revolutions |
CE Certified |
YES |
|
¤ 特性
|
|
|
¤ 運用領域

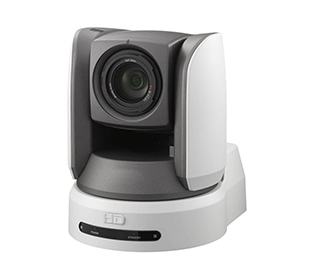

1.國防領域: 軍用雷達天線、多軸式三維空間模擬器 2. 旋轉工作臺： 帶有射頻信號的天線轉臺、支持1080P、1080I等HD-SDI的高清轉臺。 3.安防： 支持1080P、1080I等HD-SDI的多功能一體機（高速球） 4.醫療設備： CT機 |
 |
