channel |
2 channels |
|
Wavelength range |
1310/850nm or 1310/1550nm |
|
Insertion loss |
<4dB |
|
Insertion loss WOW |
<1db |
|
Return loss |
15dB |
|
Speed |
100 rpm |
|
Pulling stength |
10 N |
|
Life |
200 million revolutions |
|
Estimated life cycle |
23 dBm |
|
Working temp. |
-40 to 72 C |
|
Storage temp. |
-45 to 75 C |
|
Torque |
<0.2 Nm |
|
Fiber types |
Ф3.0 Fiber cable or armor |
|
Connector types |
FC, SC, ST, SMA, or LC (and APC finishes) |
|
Housing meterial |
Stainless steel |
|

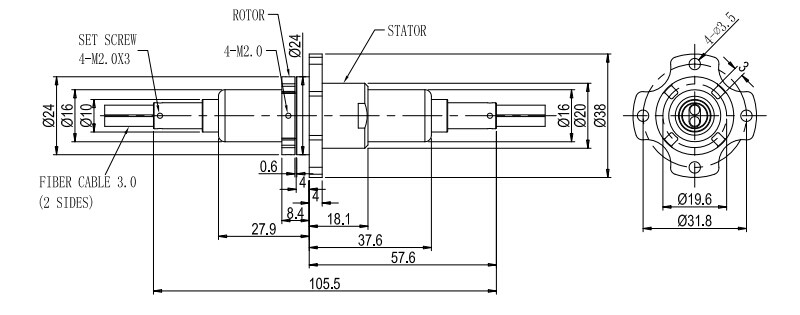

Size |
OD20*L65（mm） |
|
Weight |
100 g |
|
IP rating |
IP65 |
